Hardware
POS and SCO hardware
As a company that supplies thousands of devices annually, we prioritize equipment that meets the technical requirements of our customers, is reliable and competitively priced. When selecting a manufacturer, their flexibility in adapting devices to our requirements or collaborating on new designs is crucial. For several years we have been supplying Wintec devices to our customers.
AnyPOS600 all-in-one POS
Features & Advantages
Reliability
The use of a low-power CPU combined with an aluminum rear casing provides adequate cooling conditions without the need for fans or even ventilation holes. The lack of moving parts and the elimination of thermal damage due to dust deposition significantly reduce failure rates.
Design & Screen
Small dimensions, a bezel-less screen with high brightness and contrast and a good quality PCAP touch panel ensure comfortable work for cashiers even in stores with a very large number of customers.
All-in-one
A large number of I/O ports eliminates the need for additional hubs to connect all the necessary peripherals. Some of the peripheral devices can be powered from the POS.
Specifications
Display:
• Size: 15"
• Ratio: 4:3
• Resolution: 1024 x 768 pixels
• Projected capacitive touch
Processor:
• Intel Adler Lake N97 3.4GHz (Turbo)
Main memory:
• RAM: 4 GB DDR4 (up to 32GB)
Storage:
• min. 64 GB M.2 SSD (up to 2 SSD)
I/O ports:
Version 1:
• 1*10/100/1000M Ethernet
• 8xUSB, 3xRS232, 1xRJ45, 1xCash drawer, 1xHDMI, 1x12V DC out
Version 2:
• 4*USB (2*USB3.0), 3*RS232 (2*RJ48, 1*DB9 Female), 1*RJ45, 1*DK, 1*HDMI, 1*DC_OUT(12V), 1*Powered USB 24V, 2*Powered USB 12V, 1*USB by screen side
Operating systems:
• Windows 10 IoT 2019/2021 LTSC
• Linux Ubuntu 22.04/24.04 LTS

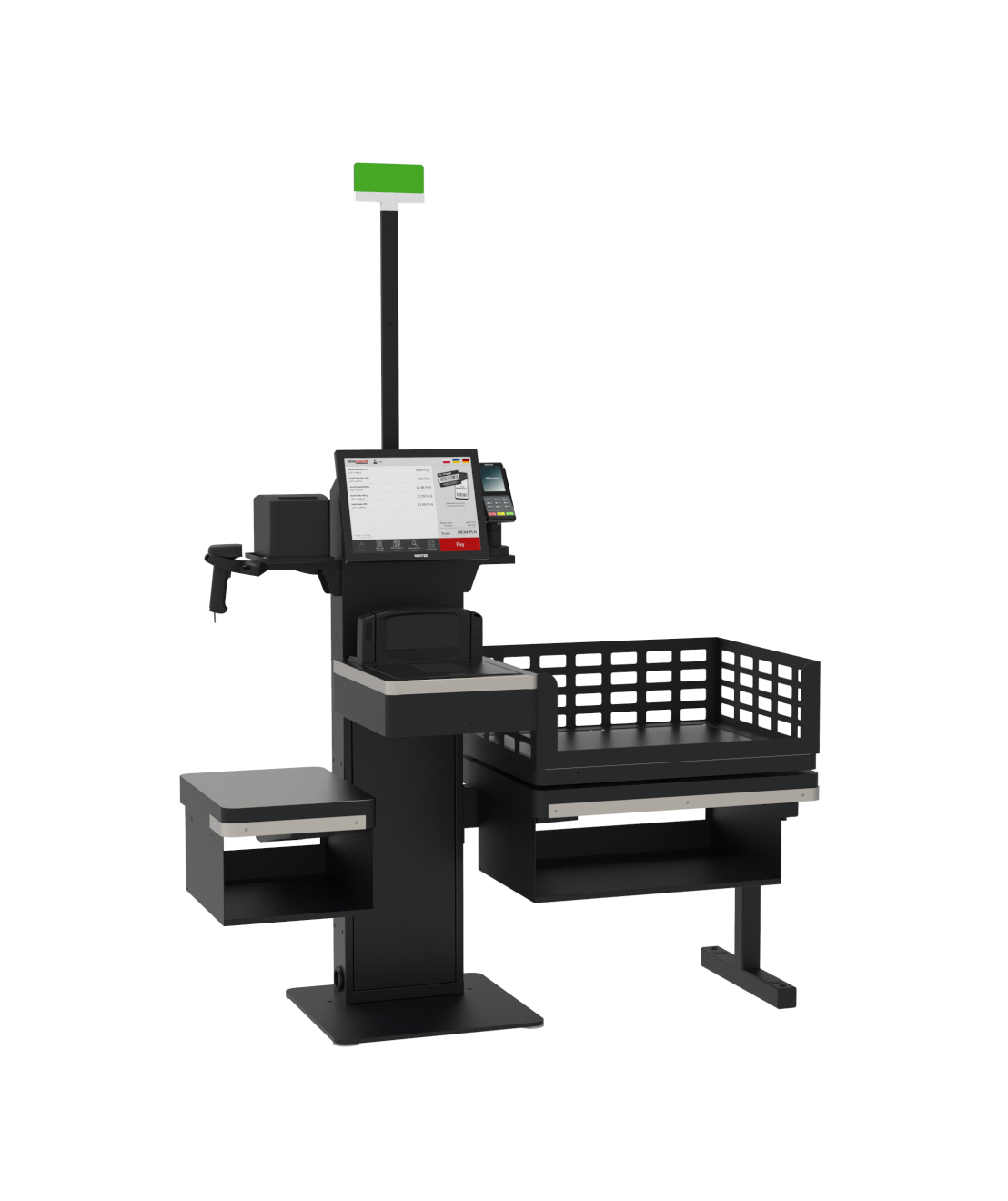

Selfpos200 SCO
Designed with a focus on space efficiency, simplicity, and visual lightness, this self-checkout solution is ideal for grocery stores - especially those where loose fruit and vegetables are weighed directly at the checkout. By forgoing a cash recycler, the central unit is minimized to fit only the essential components: a standard scanner scale with a bioptic scanner and an optional hanger for shopping bags mounted below the scanner. Shelves below the control scale and under the basket shelf provide additional space for paid shopping bags.The self checkout for grocery stores, designed to minimize space while conveying a sense of lightness and simplicity, features a compact central area. By foregoing a cash recycler, the space is optimized to just accommodate a standard scanner scale with a bioptic scanner, as well as a hanger for shopping bags.
The solution is available with two versions of the control scale, each tailored to different store formats. Both size options can be equipped with a steel basket to prevent items from falling off, making them suitable even for locations that serve customers with larger shopping baskets.
Specifications
Display:
• Size: 15"
• Ratio: 4:3
• Resolution: 1024 x 768 pixels
• Projected capacitive touch
Processor:
• Intel Adler Lake N97 3.4GHz (Turbo)
Main memory:
• RAM: 4 GB DDR4 (up to 32GB)
Storage:
• min. 64 GB M.2 SSD (up to 2 SSD)
I/O ports:
• 1*10/100/1000M Ethernet
• 4*USB, 3*RS232, 1*VGA, 1*LAN, 1*Cash Drawer, 1* 12V DC OUT
Scanner:
• Datalogic Magellan 93xx bioptical scanner with integrated scale
Control scale:
• medium: 450x600mm
• large:700x600mm
• Capacity: 60kg
Other:
• LED light pole
• basket shelf
• PIN pad holder
• receipt printer shelf
• handheld scanner holder
Options:
• handheld scanner
• bag hanger under the scanner shelf
• metal basket for the control scale
